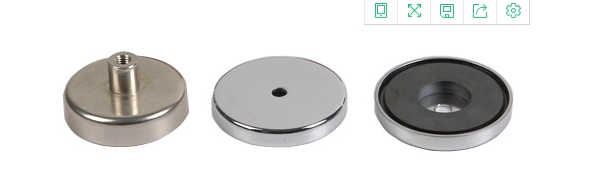

Cup assemblies
1.Flat Ferrite cup magnets
|
Part No. |
Dimension(mm) |
Weight(g) |
Pull Fprce |
|
D |
H |
|
PRMCUP01-01 |
10 |
4.5 |
2 |
4 |
|
PRMCUP01-02 |
13 |
4.5 |
3 |
10 |
|
PRMCUP01-03 |
16 |
4.5 |
4.5 |
18 |
|
PRMCUP01-04 |
20 |
6 |
10 |
30 |
|
PRMCUP01-05 |
25 |
7 |
19 |
40 |
|
PRMCUP01-06 |
32 |
7 |
30 |
80 |
|
PRMCUP01-07 |
36 |
7.7 |
40 |
100 |
|
PRMCUP01-08 |
40 |
8 |
55 |
125 |
|
PRMCUP01-09 |
47 |
9 |
80 |
180 |
|
PRMCUP01-10 |
50 |
10 |
100 |
220 |
|
PRMCUP01-11 |
57 |
10.5 |
140 |
280 |
|
PRMCUP01-12 |
63 |
14 |
230 |
350 |
|
PRMCUP01-13 |
80 |
18 |
485 |
600 |
|
PRMCUP01-14 |
100 |
22 |
900 |
900 |
|
PRMCUP01-15 |
125 |
26 |
1680 |
1300 |

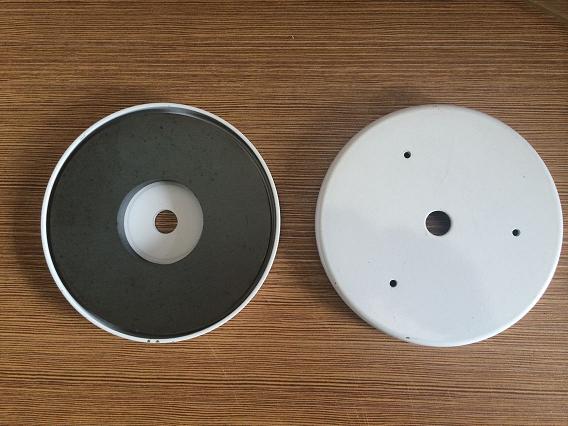

2.Flat Ferrite cup magnets with hole
|
Part No. |
Dimension(mm) |
Weight(g) |
Pull Fprce |
|
D |
H |
d1 |
d2 |
|
PRMCUP02-01 |
13 |
4.5 |
3.3 |
5 |
3 |
6 |
|
PRMCUP02-02 |
16 |
4.5 |
3.3 |
5 |
4 |
14 |
|
PRMCUP02-03 |
20 |
6 |
3.3 |
5 |
8 |
26 |
|
PRMCUP02-04 |
25 |
7 |
4 |
10 |
15 |
32 |
|
PRMCUP02-05 |
32 |
7 |
4 |
10 |
25 |
65 |
|
PRMCUP02-06 |
36 |
7.7 |
4 |
10 |
40 |
80 |
|
PRMCUP02-07 |
40 |
8 |
5.5 |
12 |
50 |
90 |
|
PRMCUP02-08 |
47 |
9 |
5.5 |
10 |
80 |
140 |
|
PRMCUP02-09 |
50 |
10 |
5.5 |
18 |
95 |
180 |
|
PRMCUP02-10 |
57 |
10.5 |
6.5 |
20 |
125 |
240 |
|
PRMCUP02-11 |
63 |
14 |
6.5 |
20 |
200 |
300 |
|
PRMCUP02-12 |
80 |
18 |
10.5 |
32 |
480 |
540 |
|
PRMCUP02-13 |
81.3 |
11.5 |
9.525 |
32 |
240 |
450 |
|
PRMCUP02-14 |
83 |
18 |
10.5 |
34 |
450 |
600 |
|
PRMCUP02-15 |
100 |
22 |
10.5 |
32 |
820 |
680 |
3.Flat Ferrite cup magnets with threaded hole
|
Part No. |
Dimension(mm) |
Weight(g) |
Pull Fprce |
|
D |
H |
M |
K |
|
PRMCUP03-01 |
25 |
7 |
4 |
5.2 |
18 |
36 |
|
PRMCUP03-02 |
32 |
7 |
4 |
5.2 |
30 |
75 |
|
PRMCUP03-03 |
40 |
8 |
4 |
5.2 |
54 |
90 |
|
PRMCUP03-04 |
50 |
10 |
6 |
12 |
95 |
170 |
|
PRMCUP03-05 |
63 |
14 |
8 |
13 |
210 |
350 |
|
PRMCUP03-06 |
80 |
18 |
8 |
14.5 |
470 |
550 |
|
PRMCUP03-07 |
80 |
18 |
10 |
14.5 |
470 |
550 |
4.Flat Ferrite cup magnets with countersink hole
|
Part No. |
Dimension(mm) |
Weight(g) |
Pull Fprce |
|
D |
H |
d1 |
d2 |
|
PRMCUP04-01 |
16 |
4.5 |
3.3 |
6.5 |
4 |
14 |
|
PRMCUP04-02 |
20 |
6 |
4.2 |
8.6 |
9 |
27 |
|
PRMCUP04-03 |
25 |
7 |
5.5 |
10.4 |
16 |
36 |
|
PRMCUP04-04 |
32 |
7 |
5.5 |
10.4 |
27 |
72 |
|
PRMCUP04-05 |
40 |
8 |
5.5 |
10.4 |
53 |
90 |
5.Ferrite cup magnets with thread spigot
|
Part No. |
Dimension(mm) |
Weight(g) |
Pull Fprce |
|
D |
h |
H |
d |
|
PRMCUP05-01 |
10 |
4.5 |
11.5 |
6 |
3 |
4 |
|
PRMCUP05-02 |
13 |
4.5 |
11.5 |
6 |
5 |
10 |
|
PRMCUP05-03 |
16 |
4.5 |
11.5 |
6 |
6 |
18 |
|
PRMCUP05-04 |
20 |
6 |
13 |
6 |
11 |
30 |
|
PRMCUP05-05 |
25 |
7 |
15 |
8 |
22 |
40 |
|
PRMCUP05-06 |
32 |
7 |
15 |
8 |
32 |
80 |
|
PRMCUP05-07 |
36 |
7.7 |
16 |
8 |
45 |
100 |
|
PRMCUP05-08 |
40 |
8 |
18 |
10 |
60 |
125 |
|
PRMCUP05-09 |
47 |
9 |
17 |
8 |
90 |
180 |
|
PRMCUP05-10 |
50 |
10 |
22 |
12 |
110 |
220 |
|
PRMCUP05-11 |
57 |
10.5 |
18.5 |
8 |
145 |
280 |
|
PRMCUP05-12 |
63 |
14 |
30 |
15 |
240 |
350 |
|
PRMCUP05-13 |
80 |
18 |
34 |
20 |
520 |
600 |
|
PRMCUP05-14 |
100 |
22 |
43 |
22 |
940 |
900 |
|
PRMCUP05-15 |
125 |
26 |
50 |
25 |
1720 |
1300 |
6.Ferrite cup magnets with thread peg
|
Part No. |
Dimension(mm) |
Weight(g) |
Pull Fprce |
|
D |
h |
H |
M |
|
PRMCUP06-01 |
10 |
4.5 |
11.5 |
3 |
3 |
4 |
|
PRMCUP06-02 |
13 |
4.5 |
11.5 |
3 |
5 |
10 |
|
PRMCUP06-03 |
16 |
4.5 |
11.5 |
3 |
6 |
18 |
|
PRMCUP06-04 |
20 |
6 |
13 |
3 |
11 |
30 |
|
PRMCUP06-05 |
25 |
7 |
15 |
4 |
22 |
40 |
|
PRMCUP06-06 |
32 |
7 |
15 |
4 |
32 |
80 |
|
PRMCUP06-07 |
47 |
9 |
17 |
3 |
90 |
180 |
|
PRMCUP06-08 |
57 |
10.5 |
18.5 |
4 |
142 |
280 |
|
PRMCUP06-09 |
63 |
14 |
29 |
4 |
235 |
350 |
|
