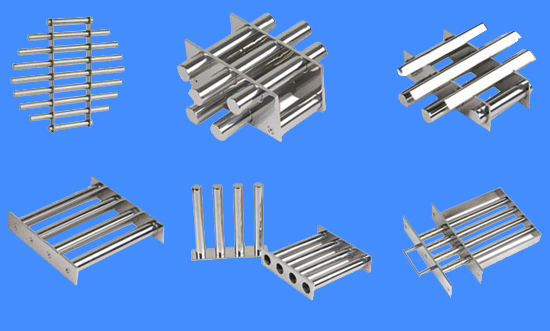

Grate/Grid magnets

PRIME MAGNETIC Magnetic Grates are placed directly in the product stream allowing free flowing products to come in direct contact with the grate.  It is easily installed in bins, chutes, drawers and hoppers. Standard magnetic grates feature Dia1'' round bars filled with either high grade Ceramic or Rare Earth Magnets, arrayed on 50mm. centers and welded into grid configurations. Both round and square shapes are available

Round Version

Part No.

Specification (mm)

Number of  bars

Part No.

Specification (mm)

Number of  bars

PRMgrateR-100

100x40

2

PRMgrateR-400

400x40

8

PRMgrateR-150

150x40

3

PRMgrateR-450

450x40

9

PRMgrateR-200

200x40

4

PRMgrateR-500

500x40

10

PRMgrateR-250

250x40

5

PRMgrateR-550

550x40

11

PRMgrateR-300

300x40

6

PRMgrateR-600

600x40

12

PRMgrateR-350

350x40

7

PRMgrateR-800

800x40

16

Square Version

Part No.

Specification (mm)

Number of  bars

Part No.

Specification (mm)

Number of  bars

PRMgrateS-100

100x100x40

2

PRMgrateS-400

400x400x40

8

PRMgrateS-150

150x150x40

3

PRMgrateS-450

450x450x40

9

PRMgrateS-200

200x200x40

4

PRMgrateS-500

500x500x40

10

PRMgrateS-250

250x250x40

5

PRMgrateS-550

550x550x40

11

PRMgrateS-300

300x300x40

6

PRMgrateS-600

600x600x40

12

PRMgrateS-350

350x350x40

7

PRMgrateS-800

800x800x40

16

OEM orders and customer designed Applications are also welcomeds
