PRIME MAGNETIC Permanent Magnetic Chuck be used as line-drawing tools of bench work for scraping and grinding. It can also is applied to holding work piece of magnetic material to be ground on surface grinding machine, universal tool grinder and electrical process machine etc. .
Our permanent magnetic chuck doesn't need electric power supply and will not cause any unexpected accident because of failure of power supply. Using magnetic chucks allows the end user to run faster feeds and speeds without chatter
 |
Feature,
Safe
Effective
Easy to operate
No electric power needed. |
Rectangular Type
|
Part No. |
Size
mm |
Height
mm |
Work Area
mm |
Pole pitch |
Net Weight
Kg |
|
PRMPMchuck-RE-100 |
100x175 |
52 |
100x145 |
1+3 |
8 |
|
PRMPMchuck-RE-125 |
125x250 |
52 |
125x213 |
1+3 |
14 |
|
PRMPMchuck-RE-150A |
150x150 |
52 |
150x117 |
1+3 |
9 |
|
PRMPMchuck-RE-150B |
150x300 |
60 |
150x257 |
1+3 |
21 |
|
PRMPMchuck-RE-150C |
150x350 |
60 |
150x305 |
1+3 |
25 |
|
PRMPMchuck-RE-150D |
150x400 |
60 |
150x357 |
1+3 |
28 |
|
PRMPMchuck-RE-150E |
150x450 |
60 |
150x405 |
1+3 |
32 |
|
PRMPMchuck-RE-200A |
200x300 |
60 |
200x257 |
1+3 |
28 |
|
PRMPMchuck-RE-200B |
200x350 |
60 |
200x305 |
1+3 |
33 |
|
PRMPMchuck-RE-200C |
200x400 |
60 |
200x357 |
1+3 |
37 |
|
PRMPMchuck-RE-200D |
200x450 |
60 |
200x405 |
1+3 |
43 |
|
PRMPMchuck-RE-200E |
200x500 |
60 |
200x457 |
1+3 |
53 |
|
PRMPMchuck-RE-200F |
200x630 |
60 |
200x585 |
1+3 |
69 |
|
PRMPMchuck-RE-250A |
250x350 |
60 |
250x305 |
1+3 |
47 |
|
PRMPMchuck-RE-250B |
250x400 |
60 |
250x357 |
1+3 |
53 |
|
PRMPMchuck-RE-250C |
250x630 |
60 |
250x585 |
1+3 |
86 |
"Pole pitch" means thickness of pole + thickness of magnet.
Round Type
|
Part No. |
Diameter
mm |
Effective Length
mm |
Height
mm |
Pole Pitch |
Net Weight
Kg |
|
PRMPMchuck-RO-100 |
100 |
|
50 |
1+3 |
3 |
|
PRMPMchuck-RO-150 |
150 |
117 |
50 |
1+3 |
7 |
|
PRMPMchuck-RO-160 |
160 |
129 |
50 |
1+3 |
8 |
|
PRMPMchuck-RO-200 |
200 |
169 |
52 |
1+3 |
12 |
|
PRMPMchuck-RO-250 |
250 |
213 |
52 |
1+3 |
19 |
|
PRMPMchuck-RO-300 |
300 |
265 |
54 |
1+3 |
28 |
|
PRMPMchuckRO-400 |
400 |
365 |
58 |
1+3 |
53 |
|
PRMPMchuck-RO-600 |
600 |
553 |
62 |
1+3 |
134 |
"Pole pitch" means thickness of pole + thickness of magnet.
OEM orders & Customer Designed Applications are also welcomed.
|||

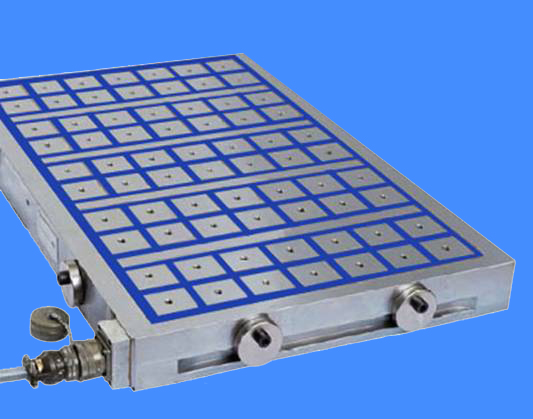

The electric permanent-magnetic chuck is a new type magnetic chuck using electric pulse for "switch On and switch Off" magnetic force. It will result in an endless permanent magnetic attraction, so it's safe and reliable for the chuck to attract workpiece. Time needed for "On/Off" is less than one second, which will ensure little electric pulse power consumption and no heat deformation of the chuck. It has no sliding parts as ordinary permanent magnetic chuck, which results in a stable, firm and high-precision structure. To use electric pulse to enforce "ON" or "OFF" of magnetic force will ensure automatic control.
It's widely applied to attract workpieces in surface grinders, electric processing machine-tools, as well as in casting, drilling, planning and boring machines. Besides, it's used in accessory holders for processing centers and FMS systems.
It is
High strength,
High security,
High stability
Reliable
PRMEPMchuck-50
General Specificatio
|
Type |
Pole Size
mm |
Pole Force
kgf |
Poles per
m2 |
|
PRMEPMchuck-50A |
50x50 |
350 |
140 |
|
PRMEPMchuck-50B |
50x50 |
350 |
196 |
PRMEPMchuck-50A
|
Height=68mm |
|
Part No. |
Size
(mm) |
Number of Pole |
Weight
(Kg) |
|
PRMEPMchuck-50A-001 |
220x470 |
12 |
55 |
|
PRMEPMchuck-50A-002 |
220x620 |
16 |
70 |
|
PRMEPMchuck-50A-003 |
220x770 |
20 |
90 |
|
PRMEPMchuck-50A-004 |
220x920 |
24 |
105 |
|
PRMEPMchuck-50A-005 |
220x1060 |
28 |
120 |
|
|
|
PRMEPMchuck-50A-006 |
300x320 |
12 |
50 |
|
PRMEPMchuck-50A-007 |
300x470 |
18 |
75 |
|
PRMEPMchuck-50A-008 |
300x620 |
24 |
95 |
|
PRMEPMchuck-50A-009 |
300x770 |
30 |
120 |
|
PRMEPMchuck-50A-010 |
300x920 |
36 |
140 |
|
PRMEPMchuck-50A-011 |
300x1060 |
42 |
160 |
|
|
|
PRMEPMchuck-50A-012 |
400x320 |
16 |
65 |
|
PRMEPMchuck-50A-013 |
400x470 |
24 |
95 |
|
PRMEPMchuck-50A-014 |
400x620 |
32 |
125 |
|
PRMEPMchuck-50A-015 |
400x770 |
40 |
155 |
|
PRMEPMchuck-50A-016 |
400x920 |
48 |
185 |
|
PRMEPMchuck-50A-017 |
400x1060 |
56 |
215 |
|
|
|
PRMEPMchuck-50A-018 |
490x320 |
20 |
80 |
|
PRMEPMchuck-50A-019 |
490x470 |
30 |
120 |
|
PRMEPMchuck-50A-020 |
490x620 |
40 |
155 |
|
PRMEPMchuck-50A-021 |
490x770 |
50 |
190 |
|
PRMEPMchuck-50A-022 |
490x920 |
60 |
230 |
|
PRMEPMchuck-50A-023 |
490x1060 |
70 |
260 |
|
|
|
PRMEPMchuck-50A-024 |
590x320 |
24 |
95 |
|
PRMEPMchuck-50A-025 |
590x470 |
36 |
140 |
|
PRMEPMchuck-50A-026 |
590x620 |
48 |
185 |
|
PRMEPMchuck-50A-027 |
590x770 |
60 |
230 |
|
PRMEPMchuck-50A-028 |
590x920 |
72 |
275 |
|
PRMEPMchuck-50A-029 |
590x1060 |
84 |
315 | |
PRMEPMchuck-50B
|
Height=68mm |
|
Part No. |
Size (mm) |
Number of Pole |
Weight
(Kg) |
|
PRMEPMchuck-50B-001 |
230x470 |
18 |
55 |
|
PRMEPMchuck-50B-002 |
230x620 |
24 |
70 |
|
PRMEPMchuck-50B-003 |
230x770 |
30 |
90 |
|
PRMEPMchuck-50B-004 |
230x920 |
36 |
110 |
|
PRMEPMchuck-50B-005 |
230x1060 |
42 |
125 |
|
|
|
PRMEPMchuck-50B-006 |
300x320 |
16 |
50 |
|
PRMEPMchuck-50B-007 |
300x470 |
24 |
75 |
|
PRMEPMchuck-50B-008 |
300x620 |
32 |
95 |
|
PRMEPMchuck-50B-009 |
300x770 |
40 |
120 |
|
PRMEPMchuck-50B-010 |
300x920 |
48 |
140 |
|
PRMEPMchuck-50B-011 |
300x1060 |
58 |
165 |
|
|
|
PRMEPMchuck-50B-012 |
410x320 |
24 |
70 |
|
PRMEPMchuck-50B-013 |
410x470 |
36 |
100 |
|
PRMEPMchuck-50B-014 |
410x620 |
48 |
130 |
|
PRMEPMchuck-50B-015 |
410x770 |
60 |
160 |
|
PRMEPMchuck-50B-016 |
410x920 |
72 |
195 |
|
PRMEPMchuck-50B-017 |
410x1060 |
84 |
220 |
|
|
|
PRMEPMchuck-50B-018 |
490x320 |
28 |
80 |
|
PRMEPMchuck-50B-019 |
490x470 |
42 |
120 |
|
PRMEPMchuck-50B-020 |
490x620 |
56 |
155 |
|
PRMEPMchuck-50B-021 |
490x770 |
70 |
195 |
|
PRMEPMchuck-50B-022 |
490x920 |
84 |
230 |
|
PRMEPMchuck-50B-023 |
490x1060 |
98 |
265 |
|
|
|
PRMEPMchuck-50B-024 |
600x320 |
36 |
100 |
|
PRMEPMchuck-50B-025 |
600x470 |
54 |
145 |
|
PRMEPMchuck-50B-026 |
600x620 |
72 |
190 |
|
PRMEPMchuck-50B-027 |
600x770 |
90 |
235 |
|
PRMEPMchuck-50B-028 |
600x920 |
108 |
280 |
|
PRMEPMchuck-50B-029 |
600x1060 |
126 |
325 | |
PRMEPMchuck-75
General Specification
|
Type |
Pole Size
mm |
Pole Force
kgf |
Poles per
m2 |
|
PRMEPMchuck-75A |
75x75 |
780 |
66 |
|
PRMEPMchuck-75B |
75x75 |
780 |
100 |
|
PRMEPMchuck-75C |
75x75 |
850 |
100 |
PRMEPMchuck-75A
|
Height=68mm |
|
Part No. |
Size
(mm) |
Number of Pole |
Weight
(Kg) |
|
PRMEPMchuck-75A-001 |
310x620 |
12 |
95 |
|
PRMEPMchuck-75A-002 |
310x820 |
16 |
125 |
|
PRMEPMchuck-75A-003 |
310x1020 |
20 |
155 |
|
|
|
PRMEPMchuck-75A-005 |
460x620 |
18 |
125 |
|
PRMEPMchuck-75A-006 |
460x820 |
24 |
165 |
|
PRMEPMchuck-75A-007 |
460x1020 |
30 |
210 |
|
|
|
PRMEPMchuck-75A-008 |
600x620 |
24 |
180 |
|
PRMEPMchuck-75A-009 |
600x820 |
32 |
200 |
|
PRMEPMchuck-75A-010 |
600x1020 |
40 |
295 |
PRMEPMchuck-75B
|
Height=68mm |
|
Part No. |
Size
(mm) |
Number of Pole |
Weight
(Kg) |
|
PRMEPMchuck-75B-001 |
230x620 |
12 |
75 |
|
PRMEPMchuck-75B-002 |
230x820 |
16 |
95 |
|
PRMEPMchuck-75B-003 |
230x1020 |
20 |
120 |
|
|
|
PRMEPMchuck-75B-004 |
310x430 |
12 |
70 |
|
PRMEPMchuck-75B-005 |
310x620 |
18 |
95 |
|
PRMEPMchuck-75B-006 |
310x820 |
24 |
125 |
|
PRMEPMchuck-75B-007 |
310x1020 |
30 |
155 |
|
|
|
PRMEPMchuck-75B-008 |
410x430 |
16 |
90 |
|
PRMEPMchuck-75B-009 |
410x620 |
24 |
125 |
|
PRMEPMchuck-75B-010 |
410x820 |
32 |
165 |
|
PRMEPMchuck-75B-011 |
410x1020 |
40 |
210 |
|
|
|
PRMEPMchuck-75B-012 |
490x230 |
10 |
60 |
|
PRMEPMchuck-75B-013 |
490x430 |
20 |
105 |
|
PRMEPMchuck-75B-014 |
490x620 |
30 |
150 |
|
PRMEPMchuck-75B-015 |
490x820 |
40 |
200 |
|
PRMEPMchuck-75B-016 |
490x1020 |
50 |
245 |
|
|
|
PRMEPMchuck-75B-017 |
590x230 |
12 |
70 |
|
PRMEPMchuck-75B-018 |
590x430 |
24 |
125 |
|
PRMEPMchuck-75B-019 |
590x620 |
36 |
180 |
|
PRMEPMchuck-75B-020 |
590x820 |
48 |
240 |
|
PRMEPMchuck-75B-021 |
590x1020 |
60 |
295 | |
PRMEPMchuck-75C
|
Height=68mm |
|
Part No. |
Size
(mm) |
Number of Pole |
Weight
(Kg) |
|
PRMEPMchuck-75C-001 |
230x620 |
12 |
80 |
|
PRMEPMchuck-75C-002 |
230x820 |
16 |
110 |
|
PRMEPMchuck-75C-003 |
230x1020 |
20 |
135 |
|
|
|
PRMEPMchuck-75C-004 |
310x430 |
12 |
75 |
|
PRMEPMchuck-75C-005 |
310x620 |
18 |
110 |
|
PRMEPMchuck-75C-006 |
310x820 |
24 |
145 |
|
PRMEPMchuck-75C-007 |
310x1020 |
30 |
180 |
|
|
|
PRMEPMchuck-75C-008 |
410x430 |
16 |
100 |
|
PRMEPMchuck-75C-009 |
410x620 |
24 |
145 |
|
PRMEPMchuck-75C-010 |
410x820 |
32 |
190 |
|
PRMEPMchuck-75C-011 |
410x1020 |
40 |
235 |
|
|
|
PRMEPMchuck-75C-012 |
490x230 |
10 |
65 |
|
PRMEPMchuck-75C-013 |
490x430 |
20 |
120 |
|
PRMEPMchuck-75C-014 |
490x620 |
30 |
170 |
|
PRMEPMchuck-75C-015 |
490x820 |
40 |
225 |
|
PRMEPMchuck-75C-0116 |
490x1020 |
50 |
260 |
|
|
|
PRMEPMchuck-75C-017 |
590x230 |
12 |
80 |
|
PRMEPMchuck-75C-018 |
590x430 |
24 |
145 |
|
PRMEPMchuck-75C-019 |
590x620 |
36 |
205 |
|
PRMEPMchuck-75C-020 |
590x820 |
48 |
270 |
|
PRMEPMchuck-75C-021 |
590x1020 |
60 |
335 | |
OEM orders & Customer Designed Applications are also welcomed.
