Liquid Line Magnetic trap

PRIME MAGNETIC  Liquid Magnet Traps are designed for extract the ferrous materials from the liquid materials in order to purify the materials in production process.Magnetic Bars containing high intensity magnets are cased within a 304 or 316 stainless steel vessel.

The units can be simply connected to the existing pipeline via flanged or threaded ends. Cleaning of the magnets is easily by removing the cover plate of the housing, lift out the each magnet assembly , wipe clean and reinstall.

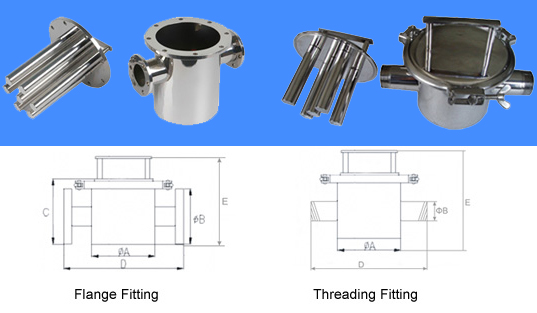

Flange Fitting

Part No.

A

B

C

D=E

Number of bars

PRML-F-150

150

50

150

300

5

PRML-F-200A

200

50

200

350

7

PRML-F-200B

200

75

200

350

7

PRML-F-250A

250

50

250

400

9

PRML-F-250B

250

75

250

400

9

PRML-F-250C

250

100

250

400

9

PRML-F-300A

300

50

300

450

9

PRML-F-300B

300

75

300

450

9

PRML-F-300C

300

100

300

450

9

Threading Fitting

Part No.

A

B

D=E

Number of bars

PRML-T-150

150

50

300

5

PRML-T-200A

200

50

350

7

PRML-T-200B

200

75

350

7

PRML-T-250A

250

50

400

9

PRML-T-250B

250

75

400

9

PRML-T-250C

250

100

400

9

PRML-T-300A

300

50

450

9

PRML-T-300B

300

75

450

9

PRML-T-300C

300

100

450

9
