Magnetic filter bar:

PRIME MAGNETIC filter Bars can be installed at any point in solid, powder and liquid material to provide an solution means removing ferrous chips and metal particles from loosely packed, free flowing materials , which is widely used in food industry, plastic processing industry and chemical industry

Dimension and Specification:

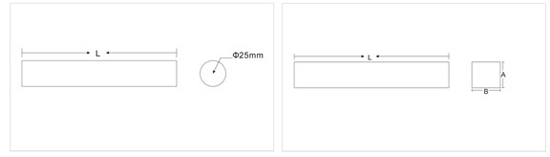

1.        For round magnetic filter bar, common size is D1inch,besides that, we can provide you  0.5inch,0.75inch,0.875inch,1.25inch,1.5inch,1.75inch,2inch,3inch,4inch for your choosing.

2.         They are usually constructed of 304 or 316 stainless steel tubes as the casing tube and  filled with Ceramic or Rare Earth Magnet. Either round or square shape bars are available for customers' desiring for special applications.

3.        Magnet Strength: Per as your' requirement. From 1500- 13,000GS

For normal magnetic bars equipped with Ceramic magnets, which can get 3000Gauss value on its surface. For normal magnetic bars equipped with NdFeB magnets, the highest can get 12000 Gauss value on its surface.

4.        Working temperature:It depend on the magnets inside, for NdFeB magnets:

N series up to 80 degree C
M series up to 100 degree C
H series up to 120 degree C
SH series up to 150 degree C
UH series up to 180 degree C
EH series up to 350 degree C

For Ferrite magnets,it can up to 150 degree C

We promise you that all of our bars are well polished and waterproof, we will also produce per as your specifically requirement.
