NdFeB Pots

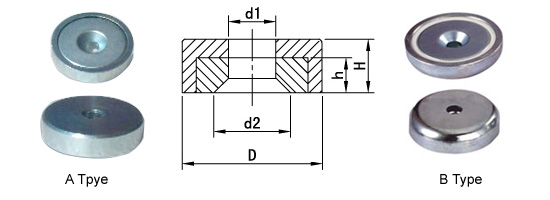

Part No.	Dimension(mm)					Weight(g)	Pull Force (N)
	D	d1	d2	H	h
PRMNP01-01	16	3.5	6.6	4.5	1.5	6	75
PRMNP01-02	20	4.5	9	6	2	15	105
PRMNP01-03	25	4.5	9	7	3	25	160
PRMNP01-04	32	5.5	11	7	3	40	310
PRMNP01-05	40	5.5	10.6	8	4	75	500

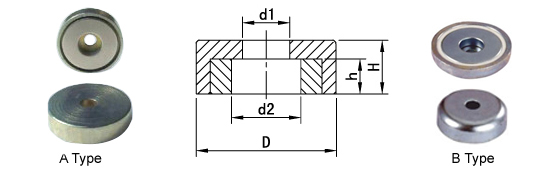

Part No.	Dimension(mm)					Weight(g)	Pull Force (N)
	D	d1	d2	H	h
PRMNP02-01	20	3.1	8	4.5	3	10	95
PRMNP02-02	25	6	11	7	5.5	20	135
PRMNP02-03	32	6	11.5	8	5	35	280
PRMNP02-04	36	5	12	7	5	47	350
PRMNP02-05	40	5.5	10	8	5	73	460

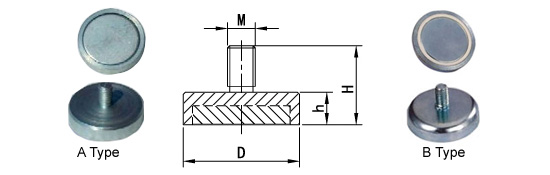

Part No.	Dimension(mm)				Weight(g)	Pull Force (N)
	D	h	M	H
PRMNP03-01	10	4.5	4	12.5	3	25
PRMNP03-02	13	4.5	5	12.5	5	60
PRMNP03-03	16	4.5	6	12.5	7.5	95
PRMNP03-04	20	7	5	14	16	140
PRMNP03-05	25	7	6	17	25	200
PRMNP03-06	32	7	6	17	48	350

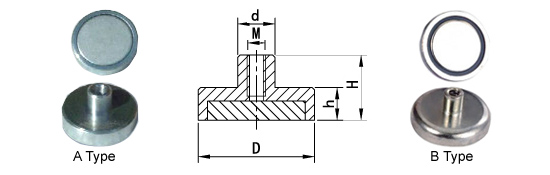

Part No.	Dimension(mm)					Weight(g)	Pull Force (N)
	D	h	M	H	d
PRMNP04-01	10	4.5	3	11.5	6	3	25
PRMNP04-02	13	4.5	3	11.5	6	6	60
PRMNP04-03	16	4.5	4	11.5	8	9.5	95
PRMNP04-04	20	6	4	13	8	18	140
PRMNP04-05	25	7	4	14	8	25	200
PRMNP04-06	32	7	5	15.5	10	48	350
PRMNP04-07	40	8.5	6	15.5	10	80	500

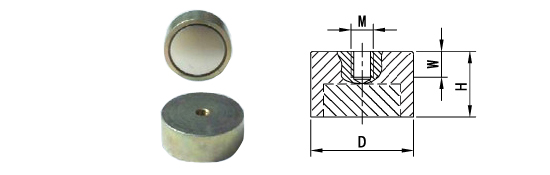

Part No.	Dimension(mm)				Weight(g)	Pull Force (N)
	D	H	M	W
PRMNP05-01	6	6	3	2.7	0.7	5
PRMNP05-02	8	6	3	3	2	13
PRMNP05-03	12	8	4	5	3.5	60
PRMNP05-04	19	8	4	5	12	130
PRMNP05-05	20	13	5	9.5	13	140
PRMNP05-06	29	10	5	5	35	320
PRMNP05-07	50	15	8	11.5	80	550
PRMNP05-08	50	20	8	11.5	140	700

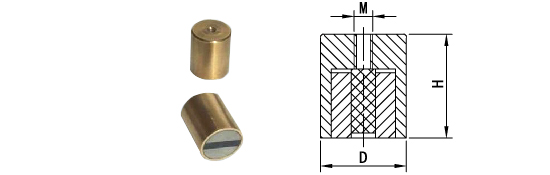

Part No.	Dimension(mm)			Weight(g)	Pull Force (N)
	D	H	M
PRMNP06-01	6	20		2.5	10
PRMNP06-02	8	20		3.5	25
PRMNP06-03	10	20	4	4.5	45
PRMNP06-04	13	20	4	7.5	70
PRMNP06-05	15	20	4	15	110
PRMNP06-06	20	25	4	28	180
PRMNP06-07	25	35	5	45	200
PRMNP06-08	32	40	6	75	450
