Products Show

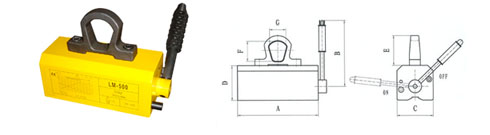

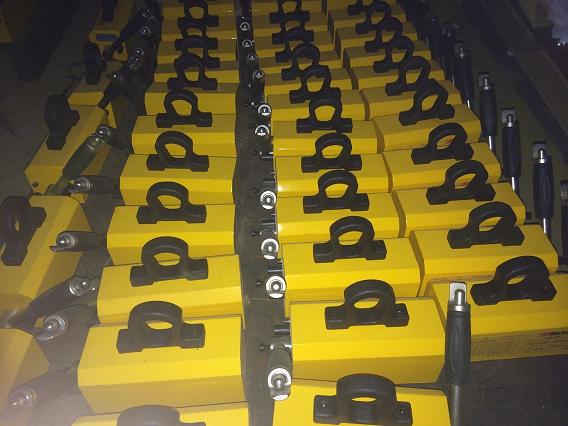

1.  Permanent Lifting magnets

PRIME MAGNETIC lifting magnets can are produced for moving, loading and
lifting purpose. They are all powerful and with strong attraction. And all of the l
ifting magnets have CE certification, easy and safe to operate

Part No. PRMPLM
0.1T
PRMPLM
0.3T
PRMPLM
0.6T
PRMPLM
1.0T
PRMPLM
2.0T
PRMPLM
3.0T
PRMPLM
6.0T

Rated

Lifting

Strength

(kgf)

100 300 600 1000 2000 3000 6000

Cylindrical

Lifting

Strength

(kgf)

50 150 300 500 1000 1500 3000

Max

Pull-off

Strength

(kgf)

335 1000 2000 3350 6700 10050 20010
A 86 180 250 330 415 470 650
B 150 168 198 262 370 480 670
C 66 80 107 129 170 234 330
D 67 80 103 130 170 190 270
E 63 63 88 88 122 122 130
F 35 35 52 52 64 64 64
G 43 43 60 60 87 87 87

Operation

Temperature

(?)

<80 <80 <80 <80 <80 <80 <80

Dead

Weight

(kg)

3 9 20 39 78 160 380



|||


PRIME MAGNETIC  is also a famous company in China for specilize in manufacturing electro-lifting magnets for many years. We can supply you various electro-lifting magnets, such as round or rectangular; normal temperature or high temperature, single or cascade.
1, Round Scrap Lifting Magnets
are suitable for transporting steel materials, chips, scraps,
slabs, cast ingots, spherical steel and sheets.

Technical Specification Voltage Rated 220DC Working Duration (TD):60%, normal temperature

Part No.

Cool-state power
consum ption
KW

Current cool-state
/hot-state
A

Lifting capability
Kg

Outline dimension
mm

Weight
kg

Steel sphere

Casing iron

scrap

A

B

C

D

E

Cool

Hot

Cool

hot

PRMEL-RO-500

2.55

11.8/7.7

1200

220

130

80

65

500

700

160

90

25

220

PRMEL-RO-600

3.0

13.6/8.9

2000

290

170

95

80

600

750

160

90

25

340

PRMEL-RO-700

3.3

15/9.8

2500

380

200

120

100

700

800

160

90

30

490

PRMEL-RO-800

3.96

18/12

3000

480

250

150

130

800

800

160

90

30

620

PRMEL-RO-900

5.9

26.8/17.5

4500

600

400

250

200

900

1090

200

125

40

800

PRMEL-RO-1000

7.7

35/22.8

6500

1000

800

450

400

1100

1140

220

150

45

1350

PRMEL-RO-1200

10

45.5/29.5

7500

1300

1000

650

500

1200

1100

220

150

45

1700

PRMEL-RO-1300

12

54.5/35.5

8500

1400

1100

700

600

1300

1240

250

175

50

2010

PRMEL-RO-1500

15.6

70.9/46.1

11000

1900

1500

1100

900

1500

1250

350

210

60

2830

PRMEL-RO-1650

16.5

75/48.8

12500

2300

1800

1300

1100

1650

1590

370

230

75

3200

PRMEL-RO-1800

22.5

102.3/66.5

14500

2750

2100

1600

1350

1800

1490

370

230

75

4230

PRMEL-RO-2100

28.4

129/84

21000

3500

2800

2200

1850

2100

1860

400

250

80

7000

PRMEL-RO-2400

33.9

154/100

26000

4800

3800

2850

2250

2400

2020

450

280

90

9000

PRMEL-RO-2600

35.6

162/105

30000

6100

4900

3600

3850

2600

2100

450

280

90

10100

PRMEL-RO-2800

39

178/116

34000

7100

5700

4450

3400

2800

2700

500

300

100

12450

PRMEL-RO-3000

41.6

189/123

39000

8350

6700

5250

4100

3000

2300

500

300

100

14980

(For Reference Only)



2,Rectangular Electro Lifting Magnet is suitable for lifting or transferring bundled bar/tube materials as well as heavy duty steel ingots or steel moulds.




Technical Specification Voltage Rated 220DC Working Duration (TD):60%

Part No.

Cool-
state power

cons
umption
KW

Current cool-state
/hot-state
A

Outline dimension
mm

Weight
kg

Lifting capability
Kg
(based
on
using
2
models
each)

A

B

C

D

E

F

G

H

PRMEL-RE-800

5

22.7/13.6

806

716

1210

350

160

250

35

480

1400

Take bundled bar steel for example, it can lift Dia330x9000mm

PRMEL-RE-900A

8.6

38.9/23.4

966

956

1450

350

170

250

40

446

1756

It can lift 6tons steel bars with length6~9m, 3tons/bundle

PRMEL-RE-900B

8.8

40/24

996

1026

1450

400

160

260

45

480

1630

It can lift 8tons steel bars with length6~9m, 4tons/bundle

PRMEL-RE-1300A

11.8

53.6/32.2

1360

1160

1050

375

170

280

45

520

3480

It can lift 11pcs steel100�100�5mm with length 19mm; it can lift 9pcs steel140�140x5mm with length16m

PRMEL-RE-1300B

9.6

43.6/26.2

1360

1160

1480

375

170

280

45

605

3890

It can lift 6pcs steel100�100�5mm with length 10mm; it can lift 6pcs steel140�140x5mm with length10m

PRMEL-RE-1300C

7.8

35.5/21.3

1306

816

1250

350

170

250

40

525

2860

It can lift 8~10tons steel bar with length 9~12m if using 4 units this model

PRMEL-RE-1300D

9.7

43.9/26.4

1306

1096

1300

375

170

250

40

426

3170

It can lift 8tons steel bar with length 6~9m,4tons/bundle

PRMEL-RE-15000A

8.1

36.8/22.1

1500

900

1400

450

180

280

40

512

2920

It can lift 8~10tons steel bars with diameter12~ 40mm, with length 9-12mif using 4units this model

PRMEL-RE-15000B

9.51

43.2/25.9

1560

1170

1520

430

180

280

55

580

3570

It can lift 15tons F 120 ~F 500 steel bar

PRMEL-RE-17000

10.24

46.6/28

1766

1072

1565

450

170

250

65

595

3630

It can lift 14tons bundled bars with length 6~12m, 3.5ton/ bundle

(For Reference Only)

3, Electro lifting magnets for attracting and lifting steel band roll. The products are divided into vertical lifting & transporting type, horizontal lifting & transporting type and general type(which can lift & transport both vertically and horizontally).

High-temperature special electromagnet is specially used for new annealed technological process of roll plate. It can work under high temperature of 100?-600?,and lift & transport band roll vertically or horizontally.
Vertical lifting & transporting type-the electromagnet attracts and holds the end face of band roll. It is suitable for lifting and transporting packed or unpacked band roll.
Horizontal lifting & transporting type-the electromagnet attracts and holds the side face of band roll, the band roll must be packed and bunched.

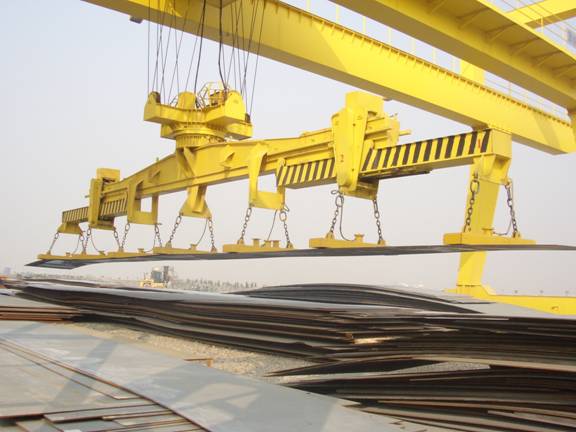

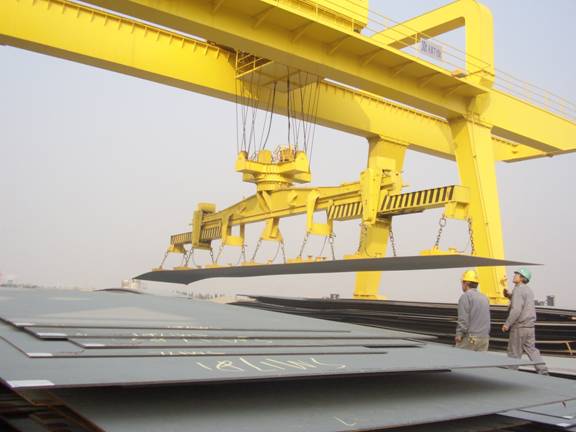

4, Electro lifting magnets for attracting and lifting steel plate, sheet.




Please contact our sales person for a quick reply. OEM orders & Customer Designed Applications are also welcomed.
