Drawer Magnet 1

PRIME MAGNETIC Drawer Magnets are excellent equipment and product protection of medium and fine ferrous contaminants in dry, free flowing products under gravity flow.They are constructed in 304 or 316 stainless steel, consisted of multiple staggered rows of round magnetic bars.

The magnetic bars emit high magnetic field across the gaps between them ,as product flows through the stainless steel housing, it cascades over the staggered rows of magnetic tubes, and the unwanted ferrous metal is extracted.

They are widely use in food industry and chemical industry. Inside the housing, it can be one layer, two layers or more layers high intensity magnetic grates in frames

To initiate cleaning, the operator release the latch assembly and open the door ,pulls two handles on the front of housing ,removing the magnetic drawer from the product flow. After it, you can wipe off the accumulated metal from the tubes into a box for disposal

Easy-Cleaning or Manual Cleaning options should be considered .

Easy-Cleaning Drawer Magnets is designed to simplify the cleaning process, once the Easy-Clean Grid magnet is extracted from the housing, you can pull the magnetic cores out of the Stainless Steel cartridge and the unwanted ferrous metal is simply falls away

Our normal size see following (All dimension in mm, other dimension can be provide on request):

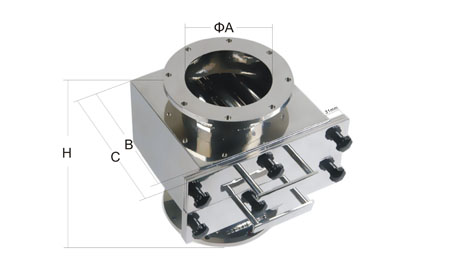

Round fitting:

Single row version

Part No.

A

B

C

H

PRMdrawer-R-S-100

100

160

175

200

PRMdrawer-R-S-150

150

210

225

200

PRMdrawer-R-S-200

200

260

275

200

PRMdrawer-R-S-250

250

310

325

220

PRMdrawer-R-S-300

300

360

375

220

PRMdrawer-R-S-350

350

410

425

250

PRMdrawer-R-S-100

400

460

475

250



Double row version

Part No.

A

B

C

H

PRMdrawer-R-D-100

100

160

175

220

PRMdrawer-R-D-150

150

210

225

250

PRMdrawer-R-D-200

200

260

275

250

PRMdrawer-R-D-250

250

310

325

300

PRMdrawer-R-D-300

300

360

375

300

PRMdrawer-R-D-350

350

410

425

330

PRMdrawer-R-D-100

400

460

475

330

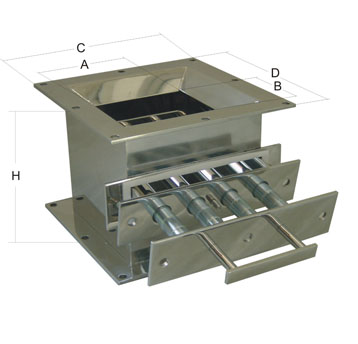

Square fitting:

Single row version

Part No.

A =B

C=D

H

PRMdrawer-S-S-100

100

180

200

PRMdrawer-S-S-150

150

230

200

PRMdrawer-S-S-200

200

280

200

PRMdrawer-S-S-250

250

330

220

PRMdrawer-S-S-300

300

380

220

PRMdrawer-S-S-350

350

430

220

PRMdrawer-S-S-100

400

480

220



double row version



Part No.

A =B

C=D

H

PRMdrawer-S-S-100

100

180

200

PRMdrawer-S-S-150

150

230

200

PRMdrawer-S-S-200

200

280

200

PRMdrawer-S-S-250

250

330

220

PRMdrawer-S-S-300

300

380

220

PRMdrawer-S-S-350

350

430

220

PRMdrawer-S-S-100

400

480

220
